Note: It is possible that your chips might come with a rare firmware version and no update could be found. Please refer to the following guides on how to update the firmware on your TPM chip: The firmware version on the chip might be quite out-dated and requires an update to work properly with Windows. Windows 10 also recognized it without any fuss. Jam it onto your motherboard with power turned OFF (I don't have to teach you the basics, right?) For my motherboard, once booted into the BIOS, the chip is automatically recognized and ready to go. Learn how to pre-tin SMD pads for caps and resistor, how to tack a chip in place, and then drag solder alone one side, then the other. Note: if you are an amateur on soldering, this might not be a bad project to learn how to solder, since everything is quite affordable. You can cut a piece of the compatible pin and stuff it into the hole on the bottom row, the 3rd one from the right. Experience in soldering TSSOP and SMD components is required. You have to know how to solder VERY well.

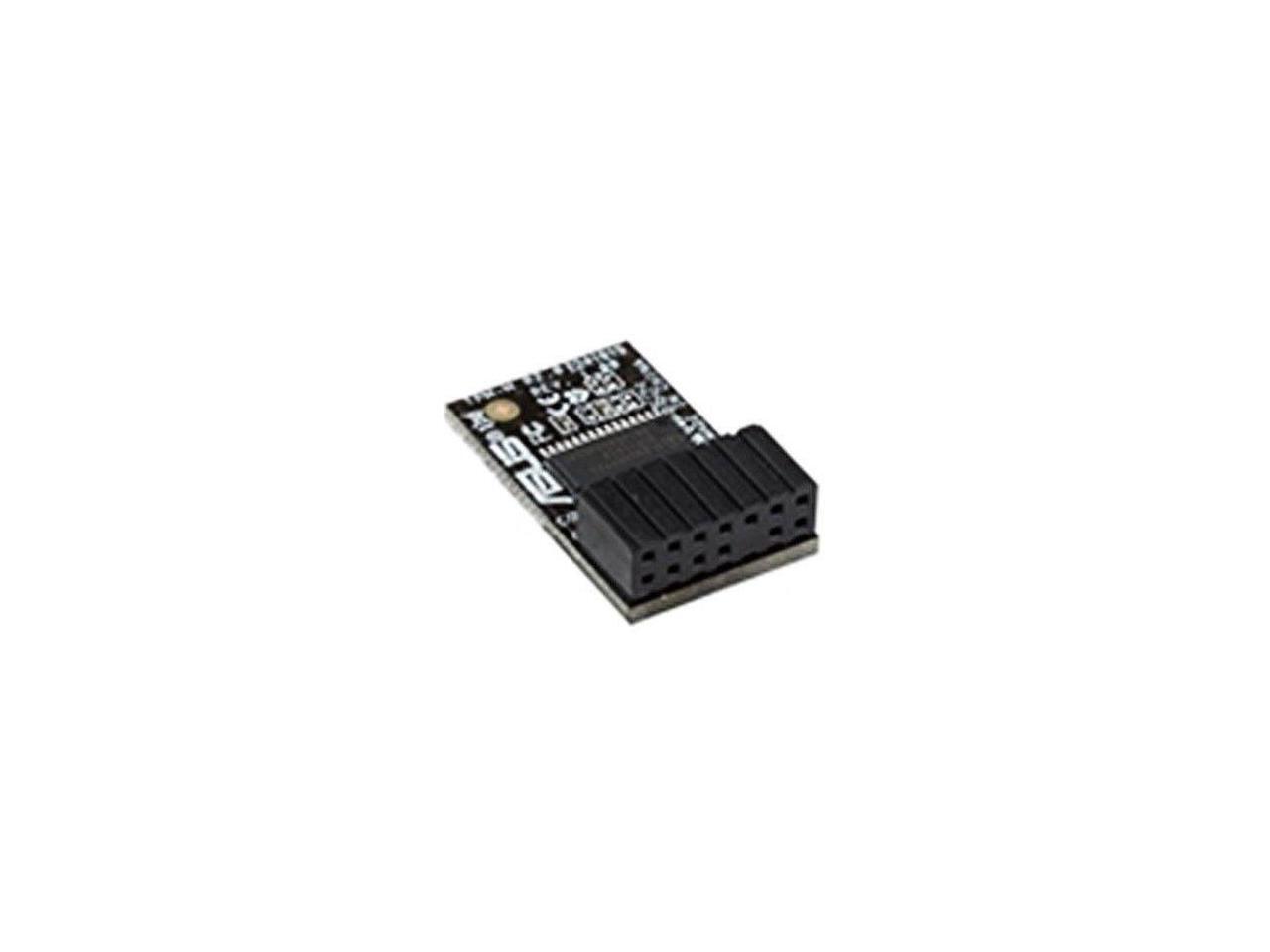

The specs are pretty laid out so you can source your own parts if you prefer. Note: You do NOT have to follow the links I used. There are many variants, so please use this as a reference to create your own.Ģ mm pitch double row right angle pin header - Choose the 2x7 option It's kinda hard to find those TPM modules that no one knew they needed - UNTIL Windows 11 happened.
